Welding positioner

2019-03-18 21:29

Detailed description

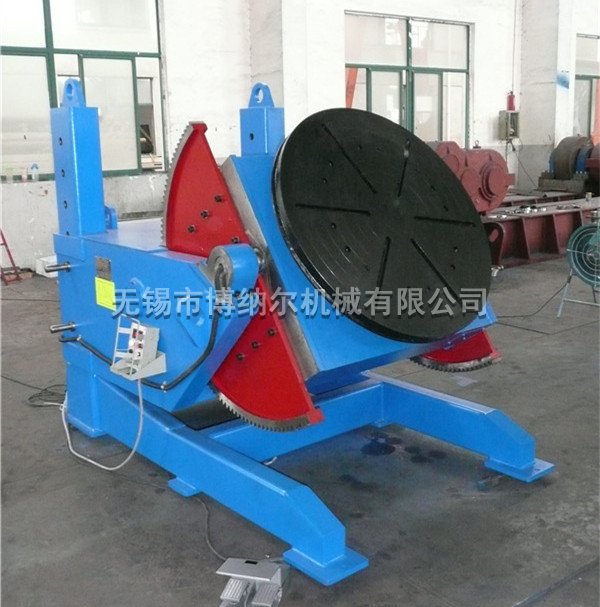

Welding positioner is a special equipment for welding flange and disc workpiece. It can make the workpiece rotate 360 degrees or turn over 0-90 degrees/120 degrees. It can be used in conjunction with the operator and arc welding power source, so that the workpiece can reach the ideal welding position. The rotating speed is steplessly regulated by frequency converter, and the operation is stable. The structural forms can be divided into single-seat tilting type, head-tail type, head-tail lifting type, L-type rotary tilting type, etc. Special requirements are designed separately.

Specification type		HB-1	HB-3	HB-6	HB-10	HB-20	HB-30	HB-50	HB-80	HB-100	HB-150	HB-200	HB-300	HB-500
Rated load-bearing weight(kg)		100	300	600	1000	2000	3000	5000	8000	10000	15000	20000	30000	50000
Slewing speed (rpm)		0.3-3	0.15-1.5	0.1-1	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.05-0.5	0.04-0.4	0.04-0.4
Reverse Speed (rpm)		手動		0.7	1.0	0.3	0.2	0.2	0.2	0.2	0.2	0.1	0.1	0.1
Workbench diameter（mm）		Φ400	Φ600	Φ1000	Φ1200	Φ1300	Φ1400	Φ1500	Φ1800	Φ2000	Φ2500	Φ2500	Φ3000	Φ4000
Maximum eccentricity（mm）		100	100	150	150	150	200	200	200	200	200	200	200	200
Maximum barycenter distance（mm）		150	150	200	200	250	300	300	400	400	400	630	630	800
Turn-over angle of worktable (°)		0-90	0-90	0-90	0-105	0-105	0-120	0-120	0-120	0-120	0-120	0-120	0-120	0-120
Rotary motor power（kw）		0.09	0.18	0.37	0.75	0.75	1.5	2.2	2.2	3	3	4	7.5	11
Turn over motor power（kw）		-	-	0.37	0.75	1.5	1.5	1.5	3	4	5.5	7.5	11	18.5
90°Diameters of hourly rotation		≤600	≤1000	≤1200	≤1500	≤1500	≤1600	≤1800	≤2200	≤2500	≤3400	≤3400	≤4200	≤5700
Speed regulation mode		Rotary Frequency Conversion Speed Regulation
Flip center distance		370	560	720	835	832	1037	1185	1100	1550	1800	2000	2600	2250
Outline size	L(mm)	750	860	1200	1300	1570	1920	2200	2380	2660	2780	2895	4200	5600
	H(mm)	497	700	900	1000	1000	1240	1400	1380	1850	2100	2350	3000	3600
	W(mm)	434	668	860	1040	1090	1310	1430	1430	1638	1910	1958	3300	4400
