H-beam erecting machine

2019-03-18 21:53

Detailed description

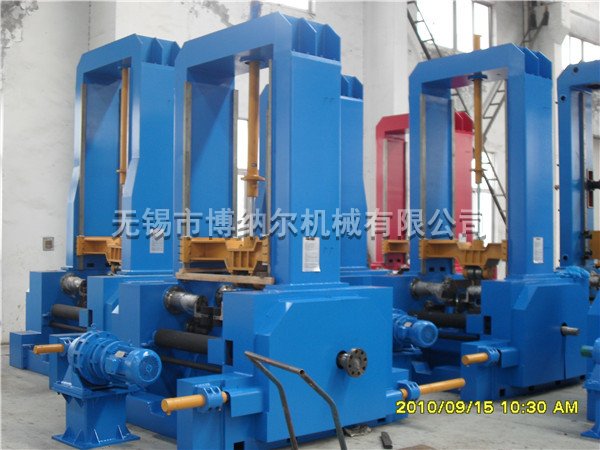

H-section steel welding production line is a special equipment for correcting the deformation of welded H-section steel flange plate. There are two series of mechanical and hydraulic for users to choose. Mechanical orthodontic machine (HYJ-600, HYJ-800), simple structure, easy and reliable operation. Hydraulic correction machine (YTJ-60B, YTJ-80) is the first one in China with large correction ability, wide range and high automation. Correction wheels and active gongs are made of high quality alloy steel, which is ensured to run for a long time by advanced heat treatment process.

Main technical parameters

Model	HYJ-600	HYJ-800	YTJ-60B	YTJ-80B
Flange width	150-600	200-800	180-800	600-1000
Flange thickness	≤20mm	≤40mm	≤60mm	≤80mm
Minimum web height	160mm	350mm	350mm	500mm
Texture of material	Q235A	Q235A	Q345A	Q235Mn
Correction speed	5.7m/min	18m/min	6.37m/min	6m/min
Motor power	9kw	24.2kw	37kw	44kw
Outside dimension of equipment (mm)	3355×890×1573	3500×1500×1700	3120×4100×2100	4700×25001×2400
Equipment quality	7000kg	9000kg	25000kg	28000kg
